MKD112C-024-GG3-LN

Bosch Rexroth Indramat

MKD112C-024-GG3-LN

Bosch Rexroth Indramat

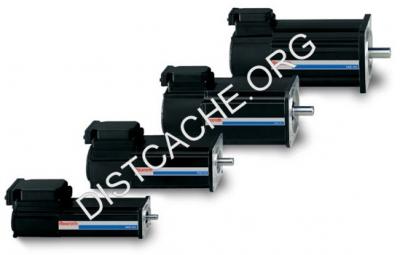

MKD112C-024-GG3-LN Image 1

Description

The MKD112C-024-GG3-LN is a synchronous motor in the MKD Series Motors by Bosch Rexroth Indramat. This model boasts high operational reliability, a characteristic of Rexroth Indramat's technologically advanced components. It is designed with an electrical communication feature that enables continuous start-stop operation with high repeat frequencies. The motor's structure allows installation in IM B5, IM V1, and IM V3 mounting positions. It includes a radial shaft sealing ring made of Fluorocaoutchouc to prevent oil leakage. The MKD112C-024-GG3-LN synchronous motor features a plain output shaft with a standard bearing capable of handling a permissible radial load. Furthermore, this motor has a lifespan of about 30,000 operating hours, under normal operating conditions. It operates at a supply voltage of 372 – 404 V and, with a motor winding code of 024, generates a rated torque of 16.6 – 44.1 Nm at a continuous current of 8.2 – 21.8 A. Equipped with a fixed-mounted temperature sensor, the MKD112C-024-GG3-LN provides overload protection. It can produce maximum torque of 148 Nm operating at peak current of 120 A with a maximum speed of 4500 rpm. Weighing approximately 45 kg (motor) and 1.2 kg (blower unit), it also includes a holding brake that generates a holding torque of 70 Nm. The unit also uses digital resolver feedback for relative position detection of the motor shaft and can operate under ambient temperature range of 0 to +40 degree Celsius or in humid conditions due to its IP 65 protection standard.

MKD112C-024-GG3-LN by Rexroth, Indramat, Bosch is a Digital AC Synchronous Servo Motor in the MKD Series. The MKD112C-024-GG3-LN features a Resolver Motor Feedback system and is Driven by a plain shaft (with shaft sealing ring). This Servo Motor has a Windings Code of 24 and comes with holding brake 70Nms.

Revision Part #:

MKD 112C 024 GG3 LNMKD 112C-024-GG3-LNMKD-112C-024-GG3-LNMKD112C-O24-GG3-LNMKD112C024GG3LN
Manufacturer Bosch Rexroth Indramat
Product Type Synchronous Motor
Model MKD112C-024-GG3-LN
Mounting Positions IM B5, IM V1, IM V3
Output Shaft Plain with Standard Bearing
Electrical Connection Through Drive Controller
Supply Voltage 372 – 404 V
Rated Torque 16.6 – 44.1 Nm
