OC950-504-01
Pacific Scientific
OC950-504-01
Pacific Scientific
![OC950-504-01 Image 1](/images/pacific-scientific-cover.png)
Description

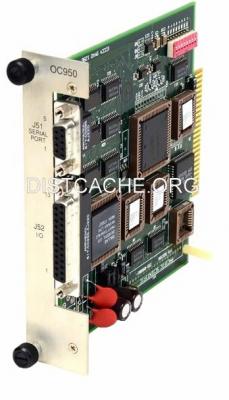

The OC950-504-01 is a positioning option card in the OC950 Series by Pacific Scientific. Pacific Scientific's OC950-504-01 is a standard card designed to execute single-axis motion control. As a component of the competitively-priced and high-performing OC950 series, this medium-power unit is compatible with 3-phase permanent magnet motors that have a brushless design. Specifically created to satisfy medium to large volume Original Equipment Manufacturer (OEM) applications, this component integrates multiple protection assets and cutting-edge capabilities, placing it at the forefront of industry technology. The OC950-504-01 is built to leverage all-digital control, including DSP-based current loops, and comes with factory-set application and system parameters. This card features digital auto-tuning, simplifying setup, and predictable performance. It includes a Digital-to-Digital Resolver Converter (DRDC), providing an unparalleled 24-bit position resolution, and a 5.3 arc minute absolute accuracy. In addition, it offers a superior sinusoidal current control within its Signature Series to ensure smooth torque ripple and consistent control dynamics at varying shaft speeds. To boost user convenience, the OC950-504-01 offers a modular construction and a removable option card. It operates using an RS-232/485 serial interface and has a programmable single-axis position, as well as the SERCOS fiber optic interface for multi-axis, plus removable personality parameters.
OC950-504-01 by Pacific Scientific is an option card that is installed in the option card slot of the SC900 servo drive. It provides stand-alone, single-axis programmable positioning capability to a high performance, digital servo drive. The OC950-504-01 features a Memory type of 128kx8 NVRAM and PC Connectivity for DDE Servers for Windows NT/Communications DDLs for Windows 95/Win 98/Win NT. This Option Card also has a Cluster Size of 255 drives and a Version of Standard 950.
Revision Part #:
0C950-504-01OC950 504 01OC950-50x-01OC95050401OC95O-5O4-O1Manufacturer | Pacific Scientific |
---|---|
Product Type | Positioning Option Card |
Model | OC950-504-01 |
Control Type | All-Digital with DSP Based Control |
Software Features | Preset Application and System Parameters |
Auto-Tuning | Digitally Conducted |
Current Control | Advanced Sinusoidal with Signature Series |
Construction | Modular with Option for Removable Card |
