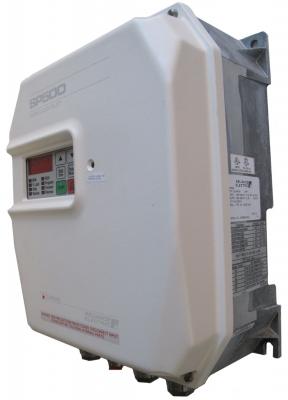

1SU24003
Reliance Electric
1SU24003
Reliance Electric
![1SU24003 Image 1](https://distcache.org//images/large/1su24003.jpg)
Description
1SU24003 is a Reliance Electric drive in the SP500 series.1SU24003 Specs: 3 HP, 200-230 volt, Three phase drive
The 1SU24003 drive is part of the SP500 Series of ac pulse-width-modulated inverters, operating on 3 phase power which is applied to the input terminals on the drive. There are also Three metal-oxide-varistor or MOV suppressors for voltage transients which regulate maximum voltage of the input diode module. 1SU24003 also features an internal dc-to-dc power supply and IGBT inverter bridge for less acoustic noise. 1SU24003 is NEMA 4X (Indoor Only) NEMA 12 enclosed and features a built in keypad. 1SU24003 is 3 HP and has an input voltage of 200-230. the volts per hertz regulator allows for adjustable speed usage which can be adjusted through the keypad or terminal strip. The drive is made to be trip-free under all conditions with the exception of a fault code error.
MPN | 1SU24003 |
---|---|
HP | 3 HP |
Input Voltage | 200-230 |
Keypad | Built-In Local Keypad |
NEMA Rating | NEMA 4X (Indoor Only) NEMA 12 |
Series | SP500 Drives |
Dimensions | 10.9" x 14.1" x 6.2" |
Phase | 3 |
Amps | 12.5 |
