1SU54010
Reliance Electric
1SU54010
Reliance Electric
Description

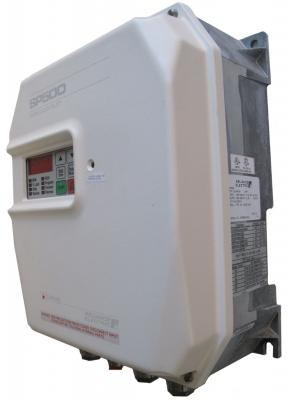

1SU54010 is a Reliance Electric drive in the SP500 series.1SU54010 Specs: 10 HP, 575 volt, Three phase drive
The 1SU54010 drive is part of the SP500 Series of ac pulse-width-modulated inverters, operating on 3 phase power which is applied to the input terminals on the drive. There are also Three metal-oxide-varistor or MOV suppressors for voltage transients which regulate maximum voltage of the input diode module. 1SU54010 also features an internal dc-to-dc power supply and IGBT inverter bridge for less acoustic noise. 1SU54010 is NEMA 4X (Indoor Only) NEMA 12 enclosed and features a built in keypad. 1SU54010 is 10 HP and has an input voltage of 575. the volts per hertz regulator allows for adjustable speed usage which can be adjusted through the keypad or terminal strip. The drive is made to be trip-free under all conditions with the exception of a fault code error.
| MPN | 1SU54010 |
|---|---|
| HP | 10 HP |
| Input Voltage | 575 |
| Keypad | Built-In Local Keypad |
| NEMA Rating | NEMA 4X (Indoor Only) NEMA 12 |
| Series | SP500 Drives |
| Dimensions | 10.9" x 14.1" x 6.2" |
| Phase | 3 |
| Amps | 14.5 |
